Hi guys,

When adding components to the Consist Of Tab in the Engineering Part Navigator on IFS Cloud the Drawing Position No tab is mandatory and it’s always a “*”. What is the purpose of this Tab and is it possible to remove it if not in use OR set default “*” when adding a new component to the BOM.

Thank you

Regards

Ina

Hi ​@Ina,

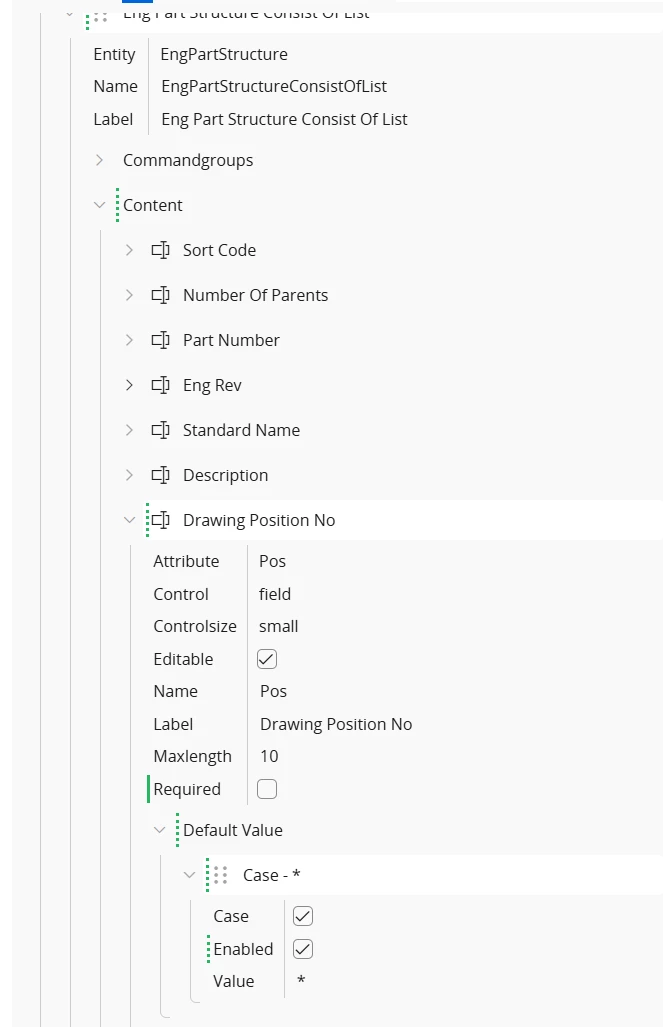

Navigate to the window and open the page designer. From there, Select all elements > Lists > Eng Part Structure Consist Of List > content > drawing position number > remove the tick in "required field" and add a default value as shown below:




Sorry I have missed this:




Hi ​@Yathartha Karunananda. Thank you for your reply and provided solution. I did not had a permission but IT department was able to change as per your guide. All working now the way we need.

Thanks again!

Regards

Ina

Hi ​@Ina,

That is great to hear. Please mark the answer that solved the problem the best answer so it will be beneficial for others too.
