How to Pass Event Attribute Values as Parameters to a PL/SQL Procedure in Custom Event Action? (IFS Apps 8)

Hello

We are trying to automatically update shop order quantities whenever the quantity (BUY_QTY_DUE) of a customer order line changes in IFS Apps 8.

Our approach is to define a Custom Event on CustomerOrderLine and use an Event Action (type: “Execute Online SQL”) to call a PL/SQL procedure which updates the quantities in SHOP_ORD.

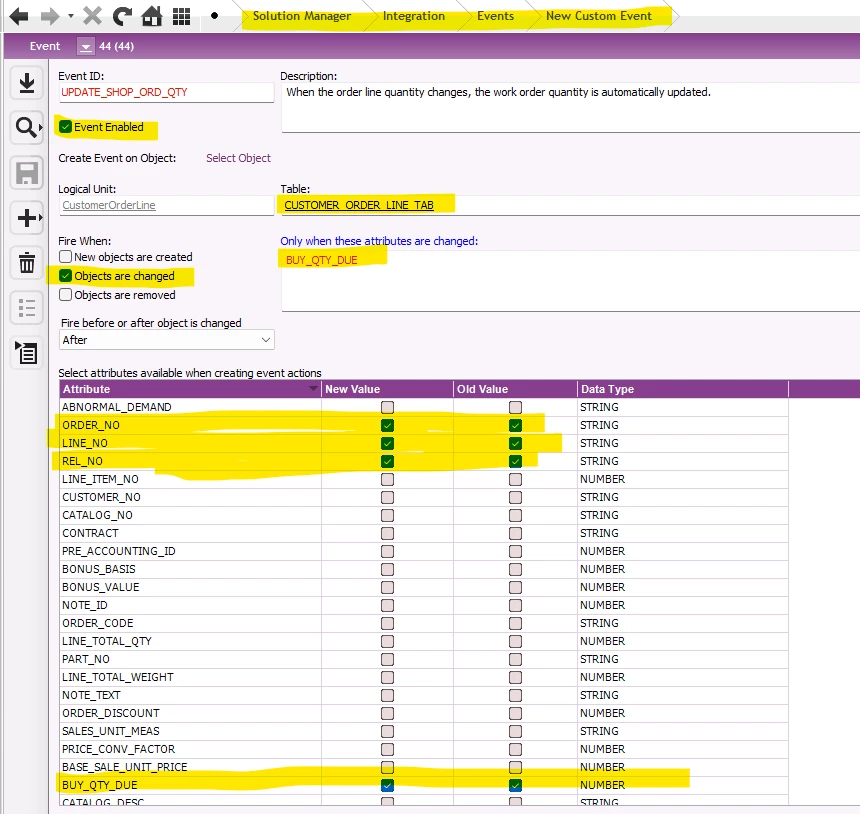

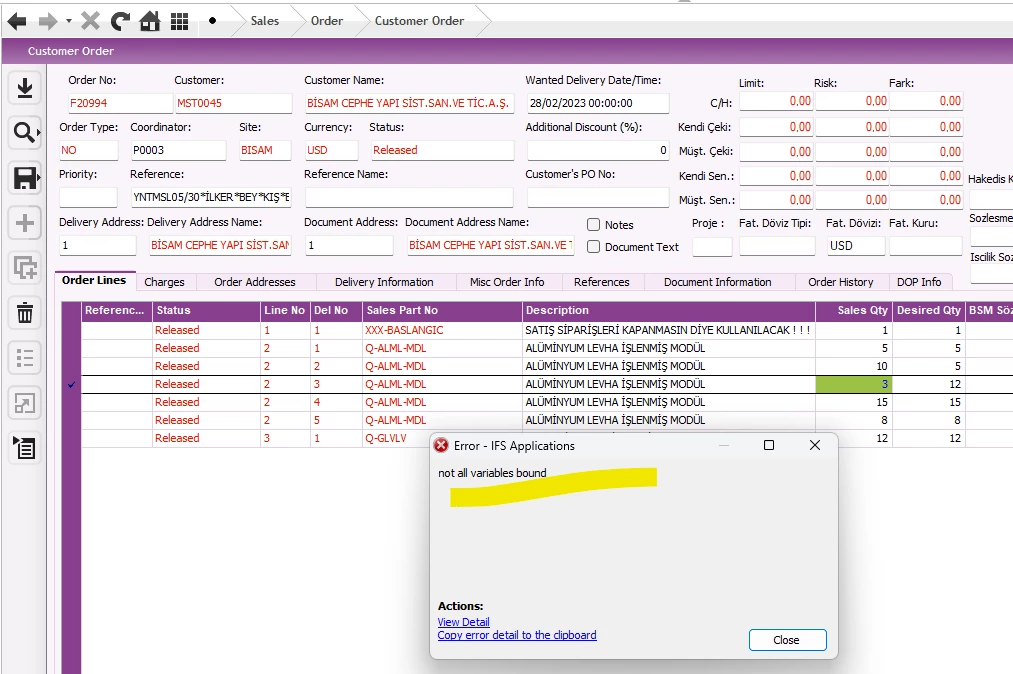

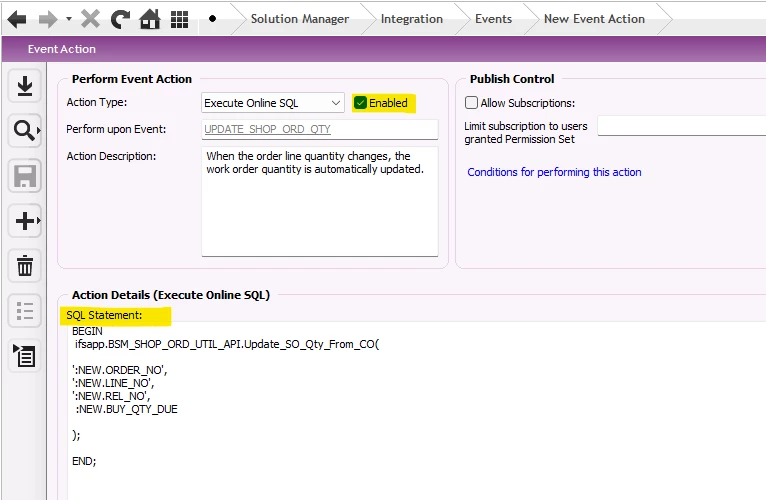

I have prepared the Custom Event, Action, and Procedure as shown in the image below.However, when I test it, it gives an error.

1PROCEDURE Update_SO_Qty_From_CO (
2   order_no_      IN VARCHAR2,
3   release_no_    IN VARCHAR2,
4   sequence_no_   IN VARCHAR2,
5   qty            IN NUMBER
6)
7IS
8   info_       VARCHAR2(2000);
9   attr_       VARCHAR2(2000);
10   objid_      VARCHAR2(2000);
11   objversion_ VARCHAR2(2000);
12BEGIN
13   FOR rec IN (
14      SELECT objid, objversion
15        FROM ifsapp.shop_ord
16       WHERE (order_no   = order_no_ OR order_no = 'YI' || SUBSTR(order_no_, 2))
17         AND release_no = release_no_
18         AND sequence_no = sequence_no_
19         AND state     <> 'Closed'
20   )
21   LOOP
22      client_sys.Clear_Attr(attr_);
23      client_sys.Add_To_Attr('REVISED_QTY_DUE', qty, attr_);
24
25      ifsapp.SHOP_ORD_API.MODIFY__(
26         info_      => info_,
27         objid_     => rec.objid,
28         objversion_=> rec.objversion,
29         attr_      => attr_,
30         action_    => 'DO'
31      );
32   END LOOP;
33END Update_SO_Qty_From_CO;
