Total Project Control Total

to add onto this, I can see in the query builder the table labeled “ProjectTotal” with an entity called “Actual Costs” which may be what I’m looking for? Not sure!

Hi ​@TWilson,

There is a standard getter function available in Project_Budget_Control_Rules_API to get ControlTotal value.

Getter Function -  PROJ_BUDGET_CONTROL_RULES_API.Get_Control_Total(COMBINATION_ID)

Please check if this can help.

Regards

Abdul Rehman

How would I go about using this getter function?

Hi @TWilson,

Abdul is spot on — Proj_Budget_Control_Rules_API.Get_Control_Total(combination_id) is exactly what drives the Control Total column on the Budget Control Summary page. Good answer, Abdul.

To answer your follow-up about how to use it: it's a standard IFS "getter" function (a public read-only function on an API package). You call it in SQL by passing the combination_id from the proj_budget_control_rules_tab table. Each row in that table represents one budget control rule for a specific combination of project, sub-project, activity, cost element, and code parts.

Here's how you'd query the control totals per budget control rule for a given project:

pl/sql

select
   pbcr.combination_id
  ,pbcr.project_id
  ,pbcr.sub_project_id
  ,pbcr.activity_seq
  ,pbcr.project_cost_element
  ,Proj_Budget_Control_Rules_API.Get_Control_Total(pbcr.combination_id)  as control_total
  ,Proj_Budget_Control_Rules_API.Get_Consumed(pbcr.combination_id)       as consumed
  ,Proj_Budget_Control_Rules_API.Get_Control_Total(pbcr.combination_id)
   - Proj_Budget_Control_Rules_API.Get_Consumed(pbcr.combination_id)     as remaining
from ifsapp.proj_budget_control_rules_tab pbcr
where pbcr.project_id = '&PROJECT_ID'

That gives you the same breakdown you see on the Budget Control Summary page in IFS.

One thing to watch out for :   Get_Control_Total returns the control total for a single budget control rule (one combination_id), not the entire project. If you just need the overall project budget total, there's a separate function for that:

plsql

select
   Proj_Budget_Control_Rules_API.Get_Total_Budget('&PROJECT_ID') as total_budget
from dual

That one sums the EAC from the active budget forecast across all cost items for the project... which is probably the single number you were originally looking for in your report.

As for the "ProjectTotal" entity you found in Query Builder.. that's showing actual/consumed cost data, not the budgeted control total, so it's a different thing. The budget control rules are where the Control Total lives.

Hope that helps!

-jason

Gotcha, I assume this means there is no other way to access/reference this data without API user permissions then?

​@TWilson -

I wrote that SQL without actually running it so I missed something if you were running it in PL/SQL Developer (or whichever IDE you use) - here’s what works in my system:


select
   pbcr.combination_id
  ,pbcr.project_id
  ,pbcr.sub_project_id
  ,pbcr.activity_seq
  ,pbcr.project_cost_element
  ,ifsapp.Proj_Budget_Control_Rules_API.Get_Control_Total(pbcr.combination_id)  as control_total
  ,ifsapp.Proj_Budget_Control_Rules_API.Get_Consumed(pbcr.combination_id)       as consumed
  ,ifsapp.Proj_Budget_Control_Rules_API.Get_Consumed(pbcr.combination_id)     as remaining
from ifsapp.proj_budget_control_rules pbcr
where pbcr.project_id = '&PROJECT_ID'

and


select
   ifsapp.Proj_Budget_Control_Rules_API.Get_Total_Budget('&PROJECT_ID') as total_budget
from dual

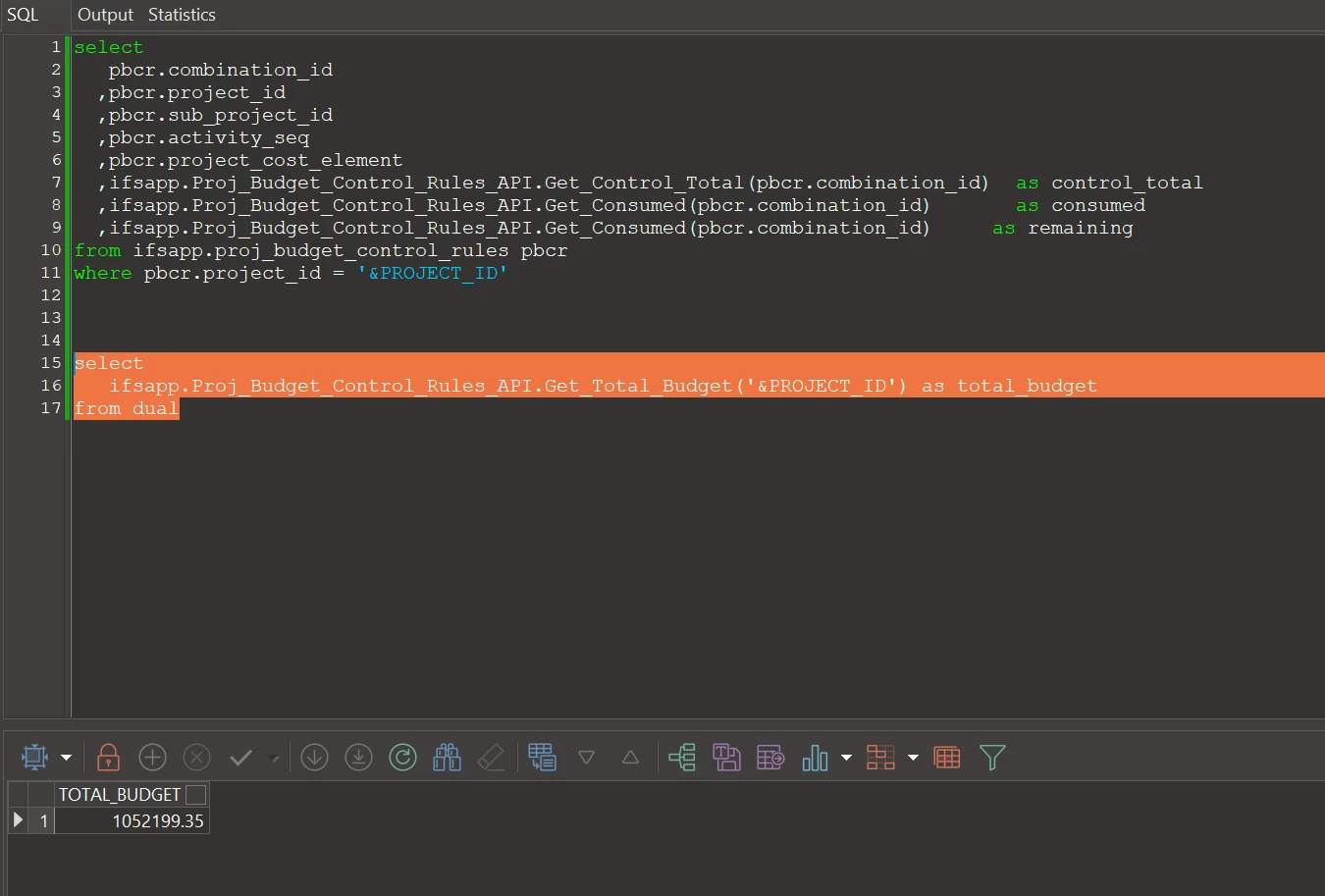

In PL/SQL Developer:

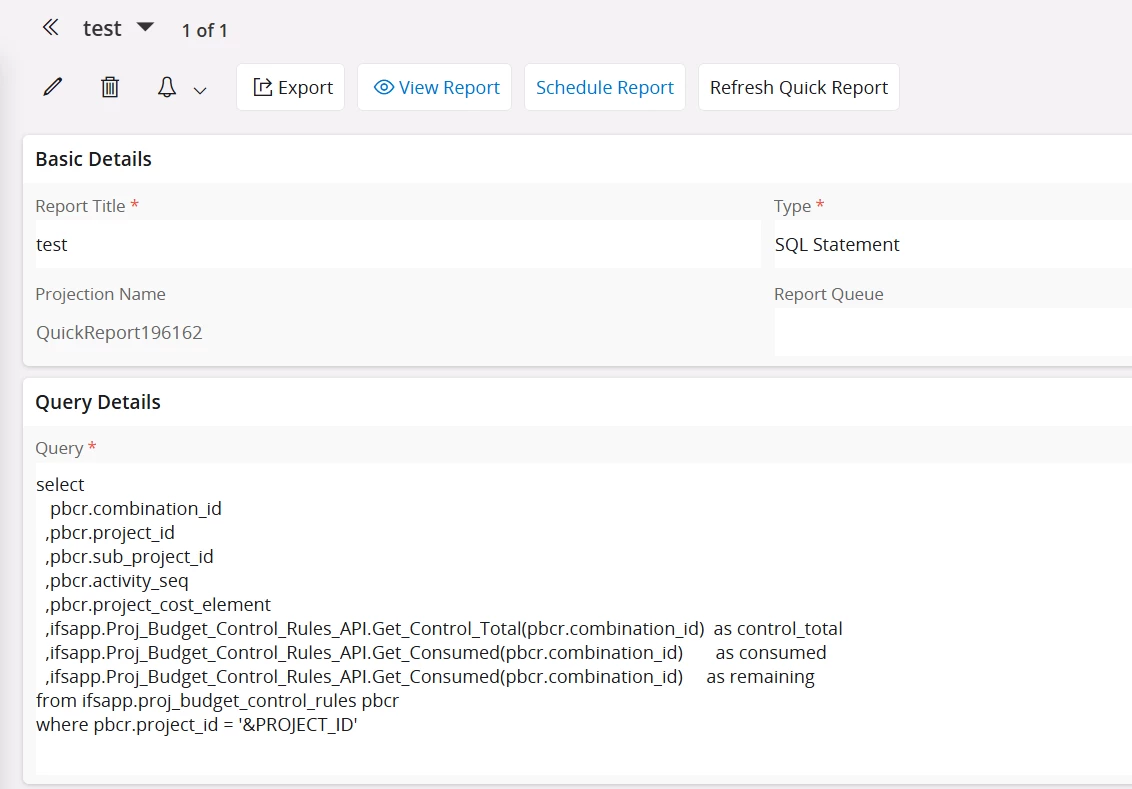

that would work as a Quick Report as well:

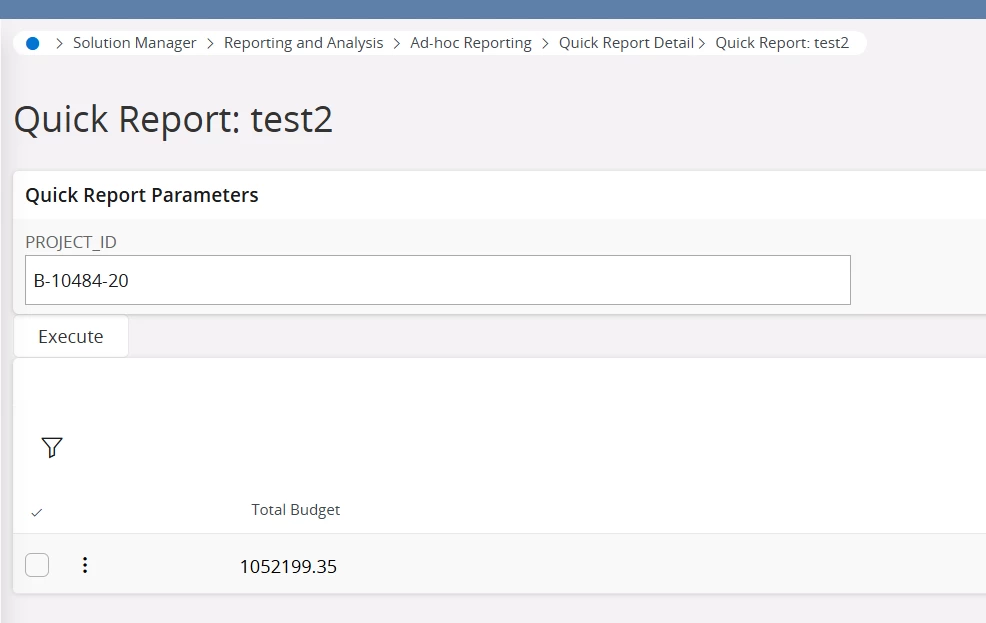

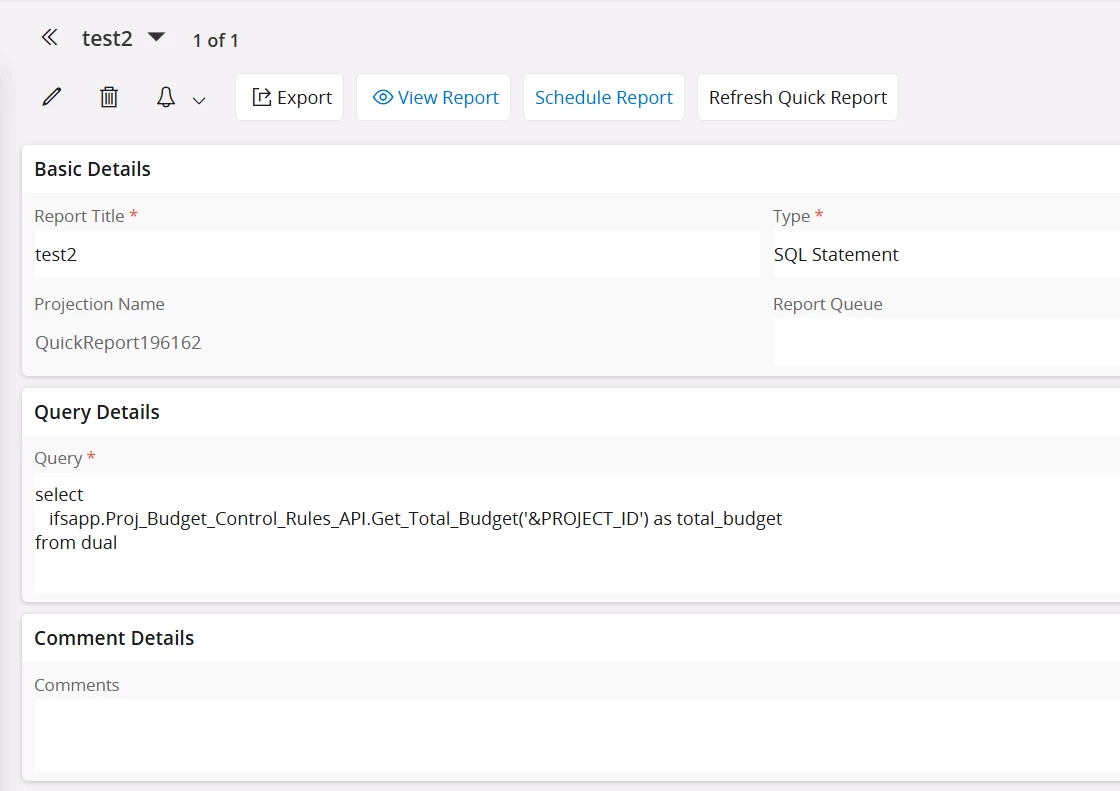

and:

I realize that this is IFS Cloud, but it should be the same in Apps10

I hope that gives you what you are looking for!

-jason
