Question

Multi Level Structure - Tentative Structure

  • December 4, 2025
  • 3 replies
  • 37 views
E
Do Gooder (Customer)
Forum|alt.badge.img+1

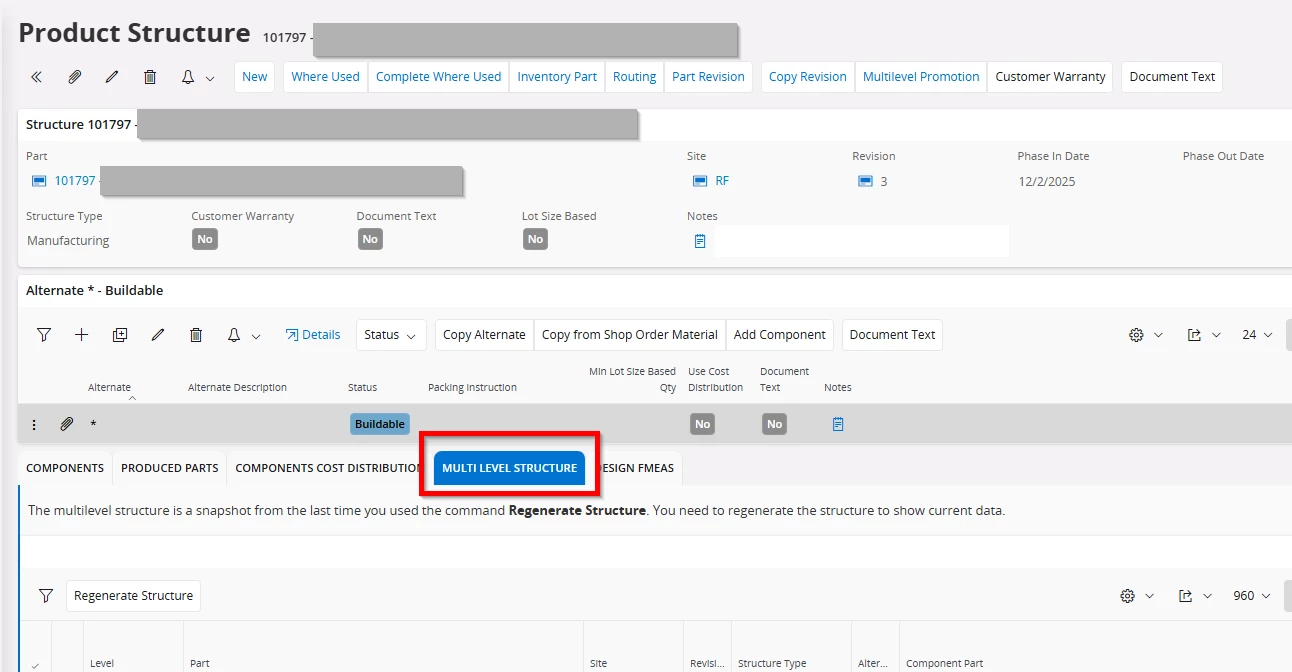

Why do tentative structures show up on the multi level structure tab on the Product Structure page?

Part Number 101793 has two product structures:  Rev 1 is buildable and Rev 2 is tentative.

Both Rev 1 and Rev 2 show up on the multi level structure.

I would have thought that only buildable structures are included in this view.  Any insight into what is and is not included in the multi level structure would be appreciated.

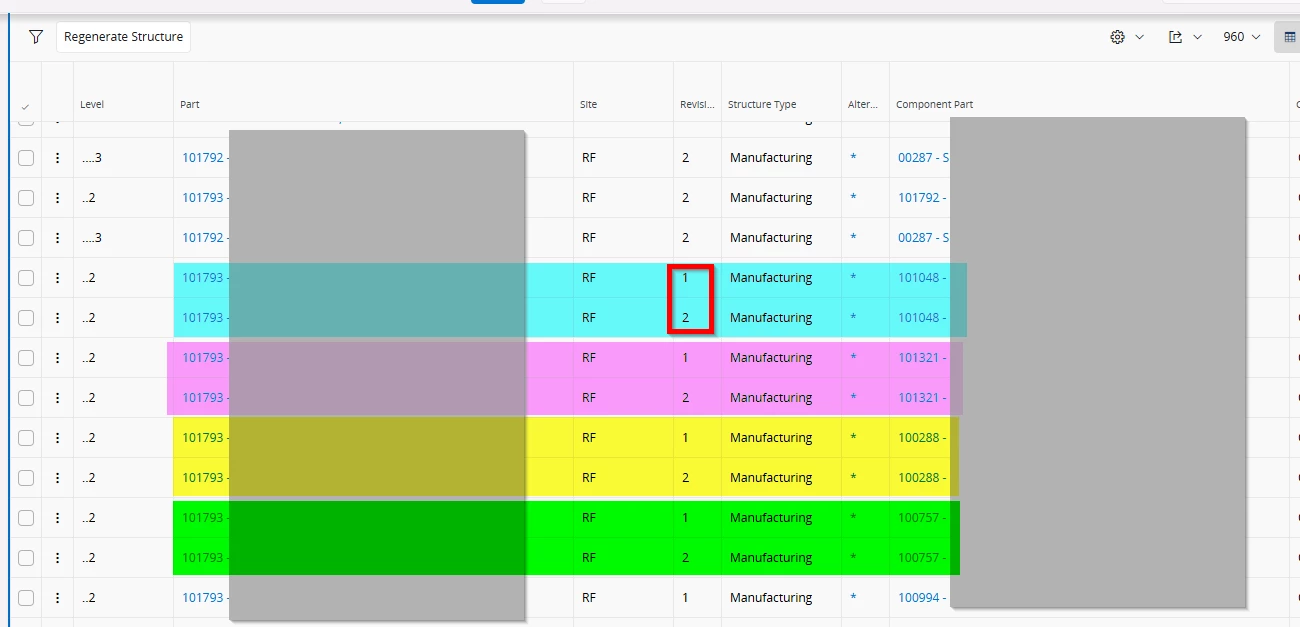

Each color represents a component that’s in both Rev 1 and Rev 2 of 101793.  Rev 2 is tentative and I wouldn’t expect it to show up on this view.

3 replies

Björn Hultgren
Hero (Employee)
Forum|alt.badge.img+25

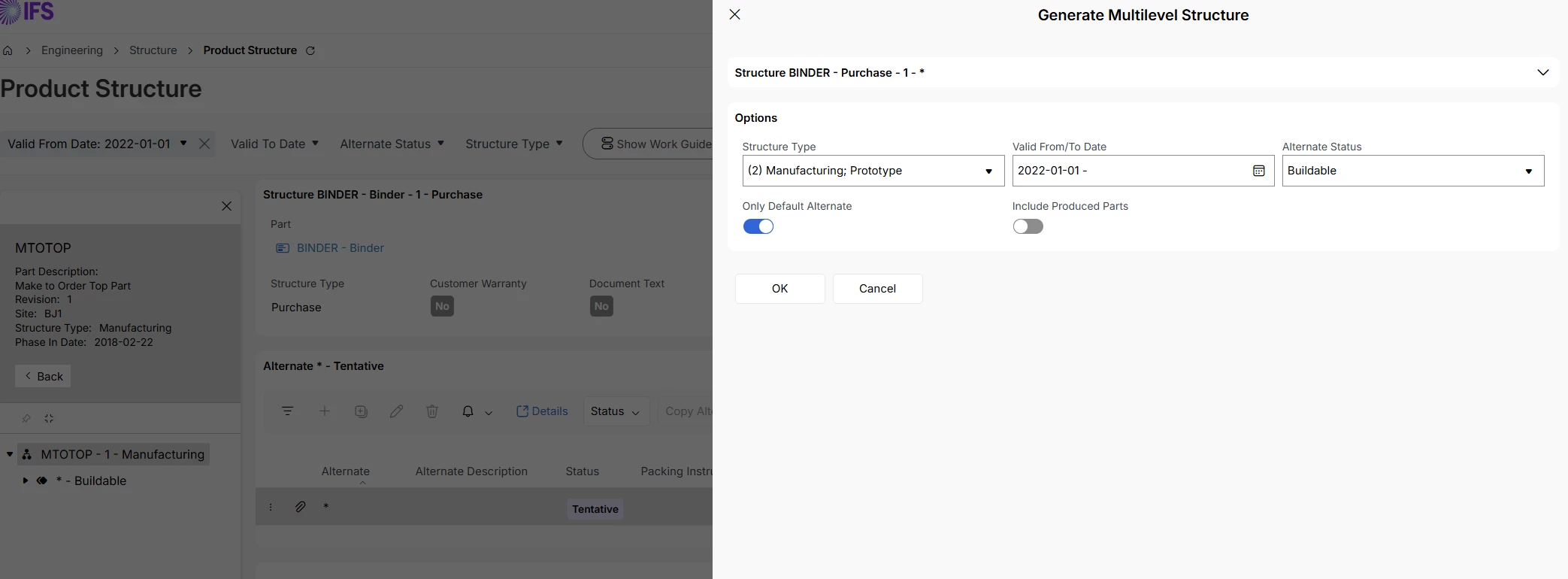

In the 25R2 release the Multilevel Structure tab has been enhanced. Now you can control the breakdown by:

  • The type of structure(s)
  • The revisions based on date interval
  • The status of the alternates
  • Whether to include only the default alternate (*)
  • Whether to include produced parts (by-products, co-products and disassembly components)

I hope this will be helpful.



E
E
Do Gooder (Customer)
Forum|alt.badge.img+1
  • eharrison
  • Author
  • Do Gooder (Customer)
  • December 5, 2025

This will be helpful - thank you!

Can you confirm that when you select “Alternate Status = Buildable” that will use only “buildable” structures for all levels in the Multilevel structure?

Björn Hultgren
Hero (Employee)
Forum|alt.badge.img+25

​@eharrison That’s correct!
