Question

Engineering Part Navigator - Navigation Tree vs Consists of Differences

  • July 16, 2025
  • 4 replies
  • 28 views
K
Sidekick (Customer)
Forum|alt.badge.img+3

Please advise if there are any limitations on the Tree View in Part Navigator?

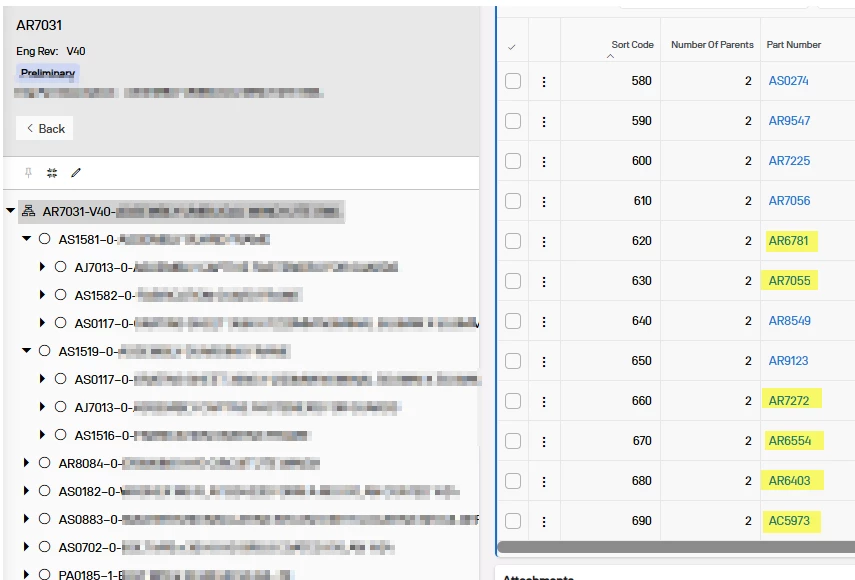

We have found a difference between the child data shown in the tree view vs the child data shown in Consists of:


6 Child Rows are not shown in the tree view but are present in the consists of structure.

When using sort code order (which was the initial assumption that it had reached a limitation), it shows that most are at the bottom of the Sort Code but NOT ALL.

Why would these views be different?
Is there a limitation on number of rows shown on the tree view?



Thank you in advance

4 replies

Abdul
Superhero (Partner)
Forum|alt.badge.img+20
  • Abdul
  • Superhero (Partner)
  • 538 replies
  • July 16, 2025

Hi ​@kerri-leigh,

There is no such limitation/option available to control tree data for the Engineering Part Navigator screen, most probably this might be due cache issue if the Consist Of tab is properly configured.

Please refresh your screen and check whether the issue still persists.



Regards

Abdul Rehman

https://www.linkedin.com/in/abdul-rehman-ifscloudexpert/
K
Sidekick (Customer)
Forum|alt.badge.img+3
  • kerri-leigh
  • Author
  • Sidekick (Customer)
  • 5 replies
  • July 16, 2025

Hi ​@kerri-leigh,

There is no such limitation/option available to control tree data for the Engineering Part Navigator screen, most probably this might be due cache issue if the Consist Of tab is properly configured.

Please refresh your screen and check whether the issue still persists.



Regards

Abdul Rehman

Hi Abdul,

Thank you for responding. This is seen across several users’ accounts/pc’s, so not a local cache issue. It seems to be a difference between Part Navigator and the Model Tree.

Abdul
Superhero (Partner)
Forum|alt.badge.img+20
  • Abdul
  • Superhero (Partner)
  • 538 replies
  • July 16, 2025

Hi ​@kerri-leigh,

Better raise a support case with IFS.

​@matt.watters appreciate it if you could confirm whether there is any limitation or option available to control the data in the Engineering Part Navigator tree structure.



Regards

Abdul Rehman



https://www.linkedin.com/in/abdul-rehman-ifscloudexpert/
matt.watters
Ultimate Hero (Partner)
Forum|alt.badge.img+26
  • matt.watters
  • Ultimate Hero (Partner)
  • 697 replies
  • July 16, 2025

​@Abdul I do not know of a limitation or something else that controls what is displayed in this tree structure.

If a response resolves your issue, please use "Best Answer" so that the thread can be closed and others can find solutions more easily. Regards - Matt
