MT Upgrade Ubuntu 20.04-22.04

This works for me … use it on the namespace pod ...

cd  <drive:>\IFS\MWS\<build-home>ifsroot\deliveries\1-build-home\ifsinstaller

.\mtctl stop --namespace <namespace>


Hello, ​@MCIPSTEV

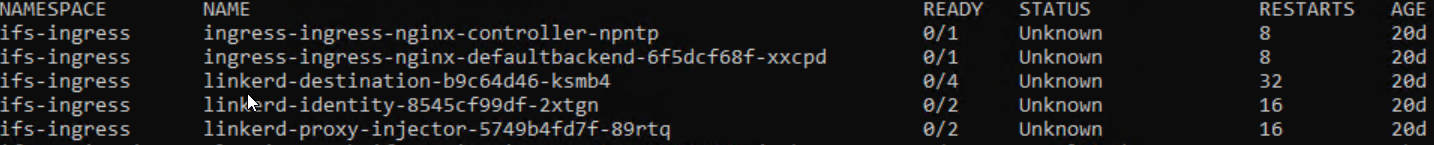

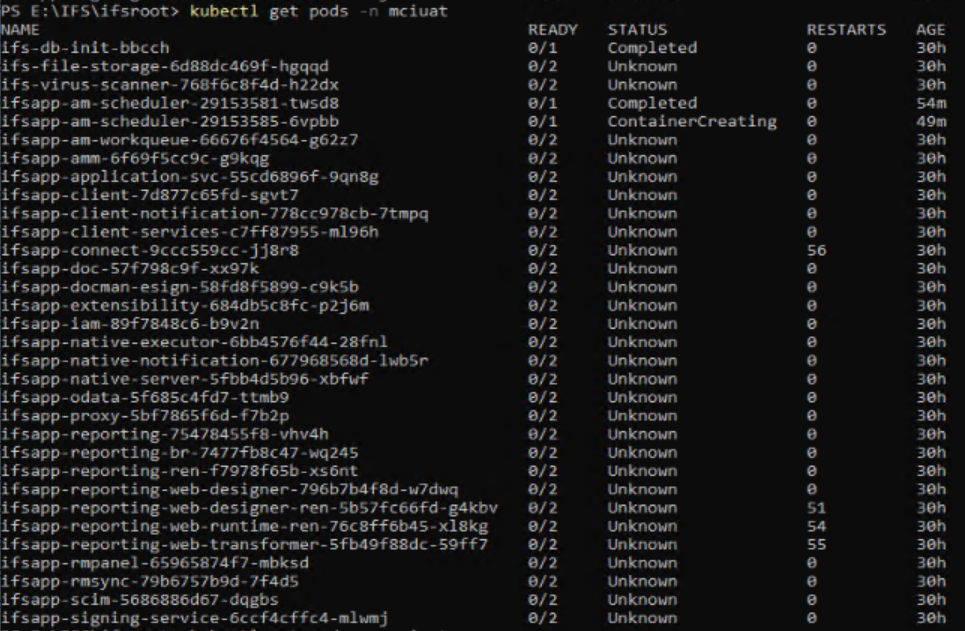

After upgrading the OS, components like systemd and the kernel can behave differently. This can break the communication between the kubelet and the container runtime , which results in all pods showing status:unknown — just like in your screenshot.

In some cases, the upgrade can also impact CNI plugins like Calico or Flannel, either removing them or breaking their configuration, which prevents pods from starting or getting network access.

To avoid this kind of issue going forward, it's a good idea to properly stop the Middleware Tier before reboot or upgrade. You can use the mtctl.cmd tool for that — it allows you to gracefully stop and start the pods. There’s a helpful section on usage here:

https://docs.ifs.com/techdocs/25r1/070_remote_deploy/060_tips_managing_middle_tier/010_mtctl/#usage

Hope this helps!

Thanks,
Hardik

IFS\MWS\ifsroot\deliveries\1.0_delivery \ifsinstaller

.\mtctl.cmd stop -n test
.\mtctl.cmd start -n test

In our particular case, le underlying pods are not in a good shape, so
.\mtctl.cmd stop -n test
.\mtctl.cmd start -n test

were not sufficient

Do I need to reinstall the MT ?

Hi Steveninck,

Please perform a "describe" on the pods. It may give a better indication for why they have an Unknown status. Also check the output for a why the previous pod restarted.

kubectl describe pod <pod name> -n ifs-ingress

You can also perform a "describe" on the node itself. It may also have additional clues.

Best regards -- Ben

Please find below the output :

PS E:\ifsroot\deliveries\build-home\ifsinstaller> kubectl describe pod ingress-ingress-nginx-controller-npntp -n ifs-ingress
Name:                 ingress-ingress-nginx-controller-npntp
Namespace:            ifs-ingress
Priority:             20000000
Priority Class Name:  ifs-infra-node-critical
Service Account:      ingress-ingress-nginx
Node:                 mcihpdifsl03.d29.tes.local/10.192.242.25
Start Time:           Tue, 20 May 2025 18:09:23 +0000
Labels:               app.kubernetes.io/component=controller
                      app.kubernetes.io/instance=ingress
                      app.kubernetes.io/managed-by=Helm
                      app.kubernetes.io/name=ingress-nginx
                      app.kubernetes.io/part-of=ingress-nginx
                      app.kubernetes.io/version=1.11.2
                      controller-revision-hash=5995844fb9
                      helm.sh/chart=ingress-nginx-4.11.2
                      pod-template-generation=1
Annotations:          <none>
Status:               Running
IP:                   10.192.242.25
IPs:
  IP:           10.192.242.25
Controlled By:  DaemonSet/ingress-ingress-nginx-controller
Containers:
  controller:
    Container ID:    containerd://0bdf453971a12e7b7162b9f38fc160196525fe4308651876e4979abc2a298954
    Image:           ifscloud.jfrog.io/docker/ingress-nginx/controller:v1.11.2
    Image ID:        ifscloud.jfrog.io/docker/ingress-nginx/controller@sha256:d5f8217feeac4887cb1ed21f27c2674e58be06bd8f5184cacea2a69abaf78dce
    Ports:           80/TCP, 443/TCP, 10254/TCP
    Host Ports:      80/TCP, 443/TCP, 10254/TCP
    SeccompProfile:  RuntimeDefault
    Args:
      /nginx-ingress-controller
      --enable-annotation-validation=true
      --default-backend-service=$(POD_NAMESPACE)/ingress-ingress-nginx-defaultbackend
      --election-id=ingress-ingress-nginx-leader
      --controller-class=k8s.io/ingress-nginx
      --ingress-class=nginx
      --configmap=$(POD_NAMESPACE)/ingress-ingress-nginx-controller
      --enable-ssl-passthrough
    State:          Terminated
      Reason:       Unknown
      Exit Code:    255
      Started:      Wed, 04 Jun 2025 03:14:08 +0000
      Finished:     Tue, 10 Jun 2025 03:17:36 +0000
    Ready:          False
    Restart Count:  8
    Requests:
      cpu:      100m
      memory:   90Mi
    Liveness:   http-get http://:10254/healthz delay=10s timeout=1s period=10s #success=1 #failure=5
    Readiness:  http-get http://:10254/healthz delay=10s timeout=1s period=10s #success=1 #failure=3
    Environment:
      POD_NAME:       ingress-ingress-nginx-controller-npntp (v1:metadata.name)
      POD_NAMESPACE:  ifs-ingress (v1:metadata.namespace)
      LD_PRELOAD:     /usr/local/lib/libmimalloc.so
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-qs2gq (ro)
Conditions:
  Type                        Status
  PodReadyToStartContainers   False
  Initialized                 True
  Ready                       False
  ContainersReady             False
  PodScheduled                True
Volumes:
  kube-api-access-qs2gq:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  3607
    ConfigMapName:           kube-root-ca.crt
    ConfigMapOptional:       <nil>
    DownwardAPI:             true
QoS Class:                   Burstable
Node-Selectors:              kubernetes.io/os=linux
Tolerations:                 node.kubernetes.io/disk-pressure:NoSchedule op=Exists
                             node.kubernetes.io/memory-pressure:NoSchedule op=Exists
                             node.kubernetes.io/network-unavailable:NoSchedule op=Exists
                             node.kubernetes.io/not-ready:NoExecute op=Exists
                             node.kubernetes.io/pid-pressure:NoSchedule op=Exists
                             node.kubernetes.io/unreachable:NoExecute op=Exists
                             node.kubernetes.io/unschedulable:NoSchedule op=Exists
Events:
  Type    Reason          Age                       From     Message
  ----    ------          ----                      ----     -------
  Normal  SandboxChanged  2m57s (x1296 over 4h43m)  kubelet  Pod sandbox changed, it will be killed and re-created.



The final line indicates: "Pod sandbox changed, it will be killed and re-created."
A quick search indicated multiple causes: 1) network problems, 2) insufficient host memory or CPU.
You can perform a describe on the node itself to view the memory and CPU resources.

Best regards -- Ben

It is just an unattended reboot, network has not changed and memory is still the same.
We are going to upgrade the OS and reinstall the MT.

Thanks for your help.

At this stage, we have reinstalled MT and is working again.
I’m looking for a procedure on how to correctly shutdown the kubernetes pods, and underlying pods, so we can script it before a reboot

Hello, that is exactely what we do, running the installer delete and mtinstaller takes about 30-60 minutes.
