How to add/mapping logical printer to IFS Cloud

Hi ​@nu_fonka

There is a known problem in 25R1 with not showing physical printer on print dialog box. I assume You want to see local printers in print dialog.

Hi ​@nu_fonka ,

  In IFS Cloud, logical printers are not detected directly from the client machine just by installing the Aurena Agent. They must be explicitly configured and mapped between:

• IFS Cloud
• Aurena Agent
• Local OS printer

 Key Point (Why it’s not working)

Installing Aurena Agent alone does NOT automatically expose printers to IFS.

IFS only recognizes printers that are:

• Registered in Logical Printer setup
• Mapped to an Aurena Agent
• And matched with a local printer name

 Step-by-Step Fix

🔹 Step 1: Verify Local Printer

On client machine:

• Go to Windows → Printers & Scanners
• Confirm:
  • Printer is installed
  • Printer name is correct (copy exact name)

🔹 Step 2: Check Aurena Agent

On client machine:

• Open Aurena Agent UI
• Verify:
  • Agent is Running
  • Status = Connected
  • User is logged in

 Also check:

• Agent shows available printers

🔹 Step 3: Configure Logical Printer in IFS

In IFS Cloud:

1. Go to:
    Solution Manager → Output Management → Logical Printers
2. Create new Logical Printer:
   • Printer ID: (any name)
   • Printer Type: PDF / Report
   • Output Channel: Aurena Agent

🔹 Step 4: Map to Aurena Agent Printer

Inside Logical Printer:

• Set:
  • Destination = Aurena Agent
  • Agent ID / Machine
  • Printer Name = EXACT Windows printer name

Must match 100% (case-sensitive sometimes)

🔹 Step 5: Assign to User

• Go to:
   User → Default Printer
• Assign your Logical Printer

🔹 Step 6: Test Printing

• Run a report
• Select your logical printer
• Check if print is triggered on client machine

 Common Issues

​@Lingesan08 from your Step 2 above, could you provide a screenshot of the Aurena Agent UI and where in this UI one would see logical printers?

Hi ​@Lingesan08  Cloud you please share the screenshot Step 2: Check Aurena Agent UI and Step 4: Map to Aurena Agent Printer , Step 5: Assign to User

Hi ​@knepiosko  Yes, in my screen i can’t see any logical printer.

Hi ​@nu_fonka ,

 This is a known issue in 25R1 where physical printers may not appear in the Aurena print dialog. Please check that:

• Aurena Agent is running and connected
• Logical printers are configured and mapped to physical printers
• The user is assigned to the printer

Aurena only shows logical printers, not direct Windows printers.

Hi ​@Lingesan08

   Aurena agent is running as normal.

• Logical printers are configured and mapped to physical printers
• The user is assigned to the printer

Could you please show example screen for 2 topic

Hi ​@Lingesan08



   Aurena agent is running as normal.

• Logical printers are configured and mapped to physical printers
• The user is assigned to the printer

Could you please show example screen for 2 topic

​@nu_fonka

Thanks for confirming  — since:

• Aurena Agent is running normally ✅
• Logical printers are configured and mapped ✅
• User is assigned to printer ✅

 Then configuration looks correct from your side.

To help identify the issue further, could you please share screenshots of the following screens?

1. Aurena Agent – Printer List

Please open IFS Aurena Agent UI and share:

 We need to confirm:

• Agent is Connected
• Physical printers are listed correctly

 2. Logical Printer Configuration (IFS)

Go to:
 Solution Manager → Output Channels / Printers

 Please include:

• Logical printer name
• Output type (e.g., Aurena Agent)
• Mapping to physical printer

 3. User Printer Mapping

Go to:
 User → Printer Mapping

 We need to verify:

• User is assigned to correct logical printer

 Why this helps

Even if everything looks configured:

• A mismatch in:
  • Printer name
  • Output channel
  • Agent registration

can still prevent printers from appearing in dropdown

I believe in some of these replies, the term Aurena Agent was used where Print Agent should have been used. There is nothing related to local/logical printer setup in the Aurena Agent.

Hi ​@Lingesan08



   Aurena agent is running as normal.

• Logical printers are configured and mapped to physical printers
• The user is assigned to the printer

Could you please show example screen for 2 topic

​@nu_fonka

Thanks for confirming  — since:

• Aurena Agent is running normally ✅
• Logical printers are configured and mapped ✅
• User is assigned to printer ✅

 Then configuration looks correct from your side.

To help identify the issue further, could you please share screenshots of the following screens?

1. Aurena Agent – Printer List

Please open IFS Aurena Agent UI and share:







 We need to confirm:

• Agent is Connected
• Physical printers are listed correctly

 2. Logical Printer Configuration (IFS)

Go to:
 Solution Manager → Output Channels / Printers







 Please include:

• Logical printer name
• Output type (e.g., Aurena Agent)
• Mapping to physical printer

 3. User Printer Mapping

Go to:
 User → Printer Mapping







 We need to verify:

• User is assigned to correct logical printer

 Why this helps

Even if everything looks configured:

• A mismatch in:
  • Printer name
  • Output channel
  • Agent registration

can still prevent printers from appearing in dropdown

Hi ​@Lingesan08

    Cloud you please see my question as below.

1. How to open AurenaUI , i not found security configuration

2.

   Logical Printer screen as below.



   3. Client printer



   4. IFS Print Agent > Need for install? because DocOnline not mention to IFS print agent for logical printer.
   5. User printer screen





็Hi ​@knepiosko

   I already install follow you link and verify troubleshooting. The result is access as normal.

https://docs.ifs.com/techdocs/25r1/070_remote_deploy/400_installation_options/040_aurena_agent/troubleshooting/#the_aurena_agent_log_file

Hi ​@Lingesan08



   Aurena agent is running as normal.

• Logical printers are configured and mapped to physical printers
• The user is assigned to the printer

Could you please show example screen for 2 topic

​@nu_fonka

Thanks for confirming  — since:

• Aurena Agent is running normally ✅
• Logical printers are configured and mapped ✅
• User is assigned to printer ✅

 Then configuration looks correct from your side.

To help identify the issue further, could you please share screenshots of the following screens?

1. Aurena Agent – Printer List

Please open IFS Aurena Agent UI and share:







 We need to confirm:

• Agent is Connected
• Physical printers are listed correctly

 2. Logical Printer Configuration (IFS)

Go to:
 Solution Manager → Output Channels / Printers







 Please include:

• Logical printer name
• Output type (e.g., Aurena Agent)
• Mapping to physical printer

 3. User Printer Mapping

Go to:
 User → Printer Mapping







 We need to verify:

• User is assigned to correct logical printer

 Why this helps

Even if everything looks configured:

• A mismatch in:
  • Printer name
  • Output channel
  • Agent registration

can still prevent printers from appearing in dropdown

Hi ​@Lingesan08

    Cloud you please see my question as below.

1. How to open AurenaUI , i not found security configuration

2.

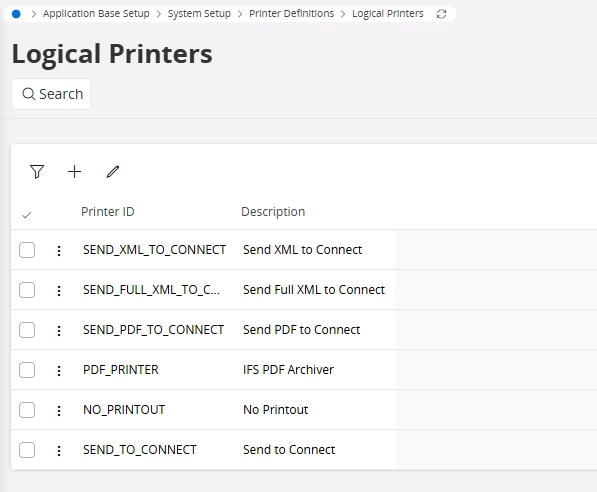

   Logical Printer screen as below.

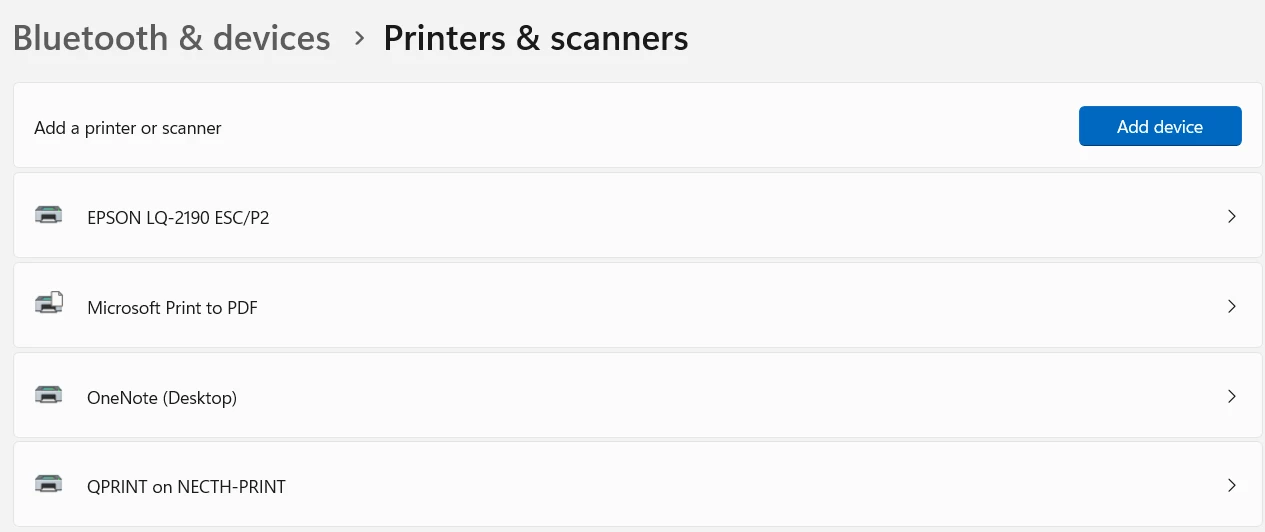

   3. Client printer



   4. IFS Print Agent > Need for install? because DocOnline not mention to IFS print agent for logical printer.

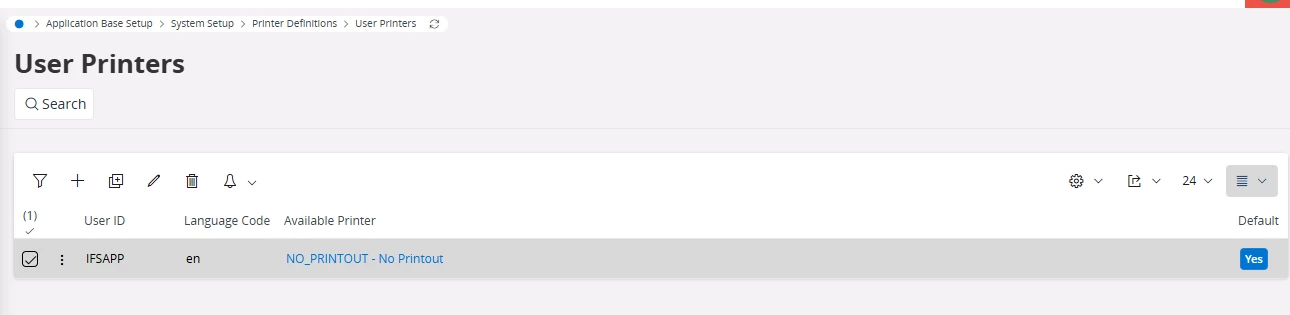

   5. User printer screen





​@nu_fonka ,

Thanks for sharing the screenshots 👍 — this helps a lot.

From what you’ve shown, the issue is clear:

 You currently only have system logical printers (PDF, Connect, No Printout)
 There is NO mapping to a real (client) printer via Aurena Agent

 Root Cause

Even though:

• Logical printers exist ✅
• User is assigned a printer ✅

 You are missing:

❗ Client Printer mapping via Aurena Agent

 Answering your questions directly

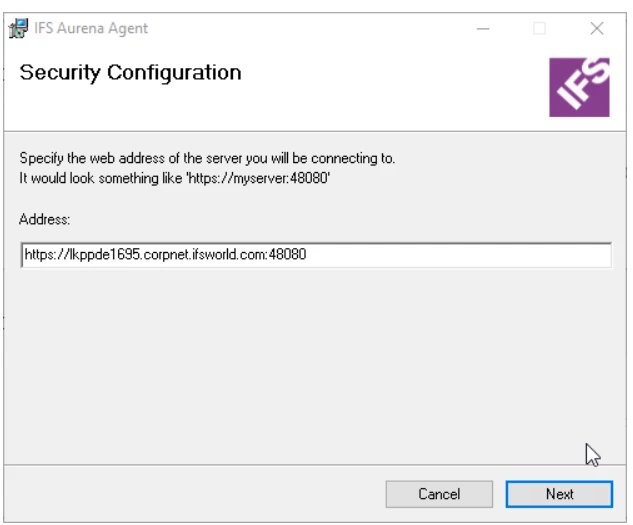

 1. How to open Aurena Agent UI?

You already have it installed (based on your screenshot):

 Steps:

1. Go to Windows system tray (bottom-right)
2. Find IFS Aurena Agent icon
3. Right-click → Open / Configure

 That is the Aurena UI

 2. Is IFS Print Agent required?

 YES ✅ (Important)

Aurena printing requires Aurena Agent

IFS Connect / DocOnline:

• ❌ NOT used for client printing
• ✔️ Used for server-side / integration printing

 3. What is missing in your setup?

From your screenshots:

• Windows printers exist ✅
• Logical printers exist ❌ (not mapped to real printers)
• User mapped to NO_PRINTOUT ❌

 That’s why nothing appears

 How to Fix (Immediate Solution)

 Step 1: Ensure Aurena Agent is Connected

In Agent UI:

• Status = Connected
• Server URL = correct

 Step 2: Check Agent Printer Detection

Agent should show:

• EPSON
• QPRINT
• etc.

 If not → reinstall agent

 Step 3: Create Logical Printer (IMPORTANT)

Go to:
  Logical Printers

Create new:

 Step 4: Map to User

Go to:
  User Printers

Change from:

NO_PRINTOUT ❌

To:

LOCAL_EPSON ✅

 Step 5: Test

• Refresh session
• Try print again

 Printer should now appear

 Important Mistake in Your Setup

 You are using:

NO_PRINTOUTSEND_TO_CONNECTPDF_PRINTER

These are:

• ❌ Not real printers
• ❌ Not for client printing

The issue is that no client printer is mapped via Aurena Agent. Logical printers like NO_PRINTOUT or PDF_PRINTER are not physical printers. You need to install/run Aurena Agent, ensure it detects your Windows printers, create a logical printer with output type “Aurena Agent”, and assign it to the user.

If you still face any issues, I’d be happy to help further.
