Solved

Workflow Designer in Cloud 25R1

  • January 21, 2026
  • 2 replies
  • 31 views
J
Sidekick (Customer)
Forum|alt.badge.img+9

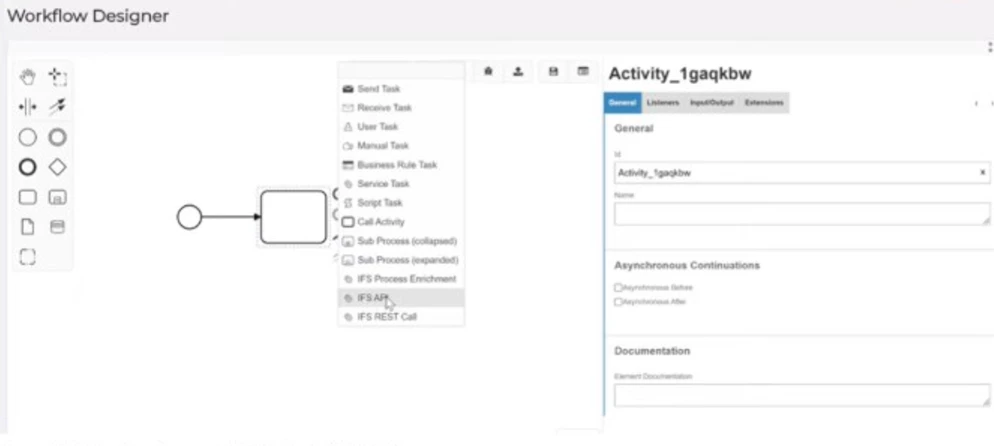

My workplace is about to upgrade to Cloud version 25R1 and I have a question about the Workflow Designer feature. When using WorkFlow Designer is it possible to call custom PL/SQL functions/procedures/packages (that I have created myself)  from the canvas area (see screen cap below).

The back-end database will be hosted on our own premises so if I add objects to that db can I access them in a Workflow? Also will I be able to pass in values from the Workflow to functions/procedures and return values etc.?

I don’t have access to the new environment yet so I can’t try it myself.

Thank you.



Best answer by kamnlk

hi ​@jdoherty,

From BPA Workflow itself we cannot directly call in plsql functions. But we can wrap the plsql function in a custom Projection Configuration action and call that using an API task in workflow. In that way we can pass in inputs to the action as well as access returned values from it inside the Workflow

ref: Custom Action Configuration - Technical Documentation For IFS Cloud

2 replies

K
Hero (Employee)
Forum|alt.badge.img+9
  • kamnlk
  • Hero (Employee)
  • Answer
  • January 21, 2026

hi ​@jdoherty,

From BPA Workflow itself we cannot directly call in plsql functions. But we can wrap the plsql function in a custom Projection Configuration action and call that using an API task in workflow. In that way we can pass in inputs to the action as well as access returned values from it inside the Workflow

ref: Custom Action Configuration - Technical Documentation For IFS Cloud

    J
    Sidekick (Customer)
    Forum|alt.badge.img+9
    • jdoherty
    • Author
    • Sidekick (Customer)
    • January 21, 2026

    hi ​@jdoherty,

    From BPA Workflow itself we cannot directly call in plsql functions. But we can wrap the plsql function in a custom Projection Configuration action and call that using an API task in workflow. In that way we can pass in inputs to the action as well as access returned values from it inside the Workflow

    ref: Custom Action Configuration - Technical Documentation For IFS Cloud

    Thanks for the reply, this may do what I require. We need to be able to access our own custom procedures and functions when we upgrade to cloud. I will bookmark that link, thanks again.
