Question

Quick Report - SQL to Query Builder


Forum|alt.badge.img+5

Hello there!

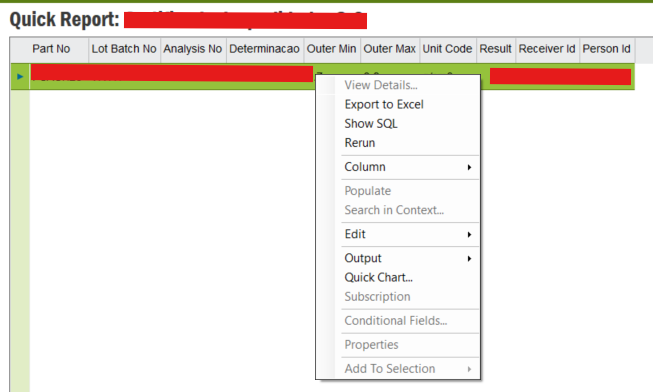

I created a report using the SQL Statement type, and now I'd like to build the same report using the query builder tool.

I attempted to do so using the builder tool, but was unsuccessful.

Could you confirm whether there is a way to convert the SQL file that is generated through the export function to the query builder type? That would allow me to import it into the system.

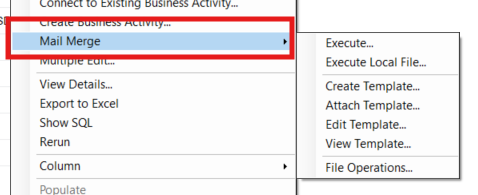

Why do I would like to do that? I’m try to enable the mail merge option on RMB at the query result screen, I managed to do it using the Customer_Info_Contact tab on the query builder



Here is my SQL statement:

SELECT
    soa.part_no,
    soa.lot_batch_no,
    soa.analysis_no,
    nt.description AS determinacao,
    an.outer_min,
    an.outer_max,
    nt.unit_code,
    qsv.result,
    rpc.receiver_id,
    rpc.person_id
FROM
    shop_order_analysis soa
JOIN (
    SELECT COMPONENT_PART FROM (
        SELECT
            COMPONENT_PART,
            ROW_NUMBER() OVER (ORDER BY ENG_CHG_LEVEL DESC) AS rn
        FROM PROD_STRUCTURE
        WHERE PART_NO = '&PART_NO'
          AND BOM_TYPE_DB = 'M'
          AND ALTERNATIVE_NO = '*'
          AND COMPONENT_PART LIKE 'PSA%'
    )
    WHERE rn = 1
) cte ON soa.part_no = cte.COMPONENT_PART
JOIN analysis_norm an ON an.analysis_no = soa.analysis_no
JOIN norm_type nt ON nt.norm_type = an.norm_type
JOIN qman_sample_value qsv
  ON qsv.analysis_no = an.analysis_no
 AND qsv.data_point = an.data_point
LEFT JOIN (
    SELECT *
    FROM (
        SELECT
            smrm.receiver_id,
            cic.person_id,
            smra.part_no,
            smra.lot_batch_no,
            ROW_NUMBER() OVER (
                PARTITION BY smra.part_no, smra.lot_batch_no
                ORDER BY smrm.receiver_id
            ) AS rn
        FROM single_manual_reservation_alt smra
        JOIN source_manual_reserv_main_alt smrm
          ON smrm.source_ref1 = smra.source_ref1
         AND smrm.source_ref2 = smra.source_ref2
         AND smrm.source_ref3 = smra.source_ref3
         AND smrm.source_ref4 = smra.source_ref4
        LEFT JOIN customer_info_contact cic
          ON cic.customer_id = smrm.receiver_id
        WHERE smra.part_no = '&PART_NO'
          AND smra.lot_batch_no = '&LOT_BATCH_NO'
          AND smra.source_ref1 = '&SOURCE_REF1'
    )
    WHERE rn = 1
) rpc ON rpc.part_no = '&PART_NO' AND rpc.lot_batch_no = soa.lot_batch_no
WHERE soa.lot_batch_no = '&LOT_BATCH_NO'
  AND soa.part_no = cte.COMPONENT_PART



0 replies

Be the first to reply!
