Is there a standard procedure or recommended way to add a picture (or other attachments, like maintenance instructions) to multiple functional objects based on a specific field, such as Type Designation or Object Type?

What I would like to achieve is; I upload media to a specific type designation →  it would automatically show on all functional objects of that type determined, or do I need to attach the media items one by one to objects?

Any suggestions or best practices for mass attaching files or automating this process are appreciated.



BR,



Ville

Best answer by Mayura Wasantha

Hi ​@VeeVee  Try to define the right Object Connection Transformation rules.



4 replies

Mayura Wasantha
Superhero (Employee)
Forum|alt.badge.img+19
  • Superhero (Employee)
  • Answer
  • September 26, 2025

Hi ​@VeeVee  Try to define the right Object Connection Transformation rules.




Forum|alt.badge.img+1
  • Author
  • Do Gooder (Customer)
  • October 9, 2025

@Mayura Wasantha

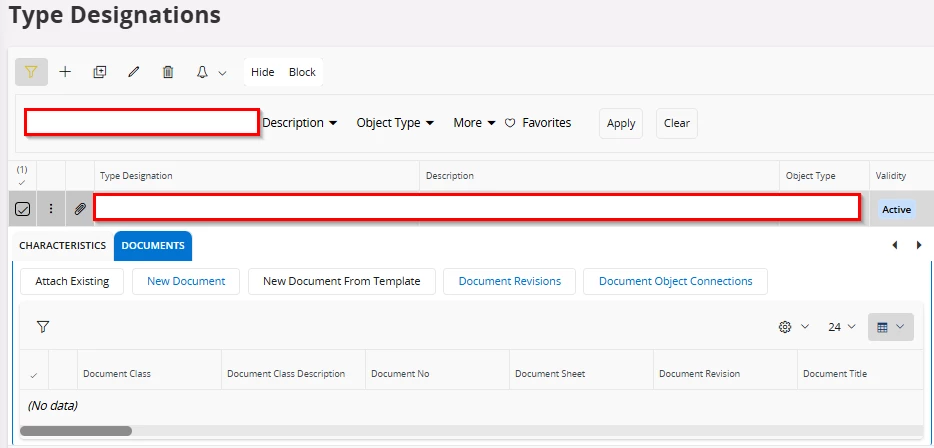

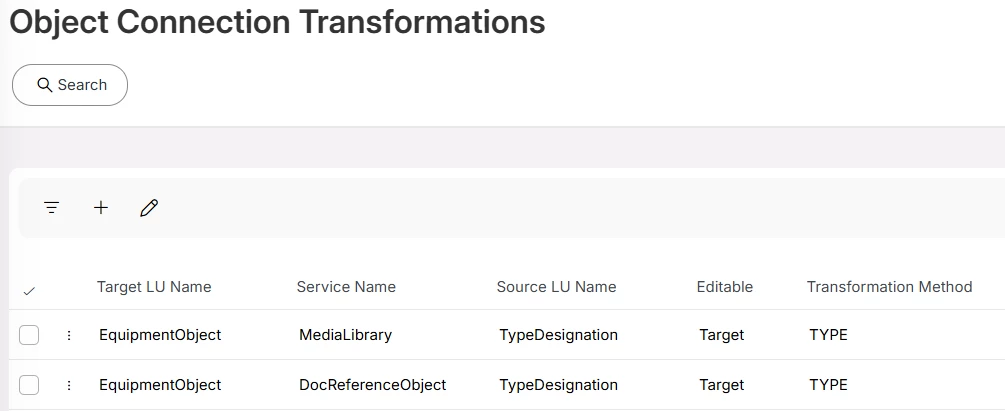

Thanks for the answer. I managed to do the documents one successfully but the media one is questionable. Does it need customization? I created the rules you suggested to object connections transformations. But here I don’t see “media”. Am I in the right place, or is this supposed to be done on another screen?

IF matters; when creating the rule, I selected service name "medialibrary" first, but it wouldn’t populate the source LU Name “TypeDesignation” available. I had to select the LU Name "TypeDesignation" first and then choose service name "Medialibrary."



Br,



Ville


Nethmini Kosvinna
Superhero (Partner)
Forum|alt.badge.img+18

HI ​@VeeVee ,

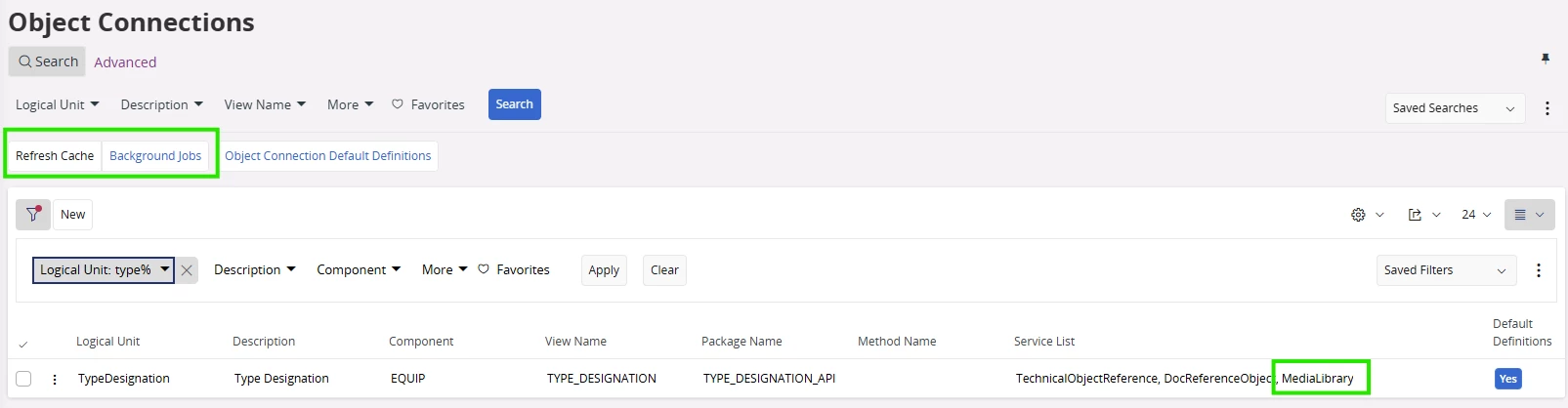

Did you refresh cache after setting up Media Library as a Service for Type Designation in Object Connections?



Thanks,
Nethmini


Forum|alt.badge.img+1
  • Author
  • Do Gooder (Customer)
  • October 27, 2025

@Nethmini Kosvinna  Thanks. Got this working!
